0.91 inch I2C/IIC Serial 4-Pin OLED Display Module-WHITE
- Size: 0.91 inch
- Resolution: 128 x 32
- Controlling Chip: SSD1306
- Display Area: 22.384 x 5.584mm
- Driving Voltage: 3-5V
- Operating Temperature: -40~70 celsius
- Interface Type: IIC
- Light Color: White
₹156.00 (Inc. GST)
₹132.20
(+18% GST Extra)
In stock
In stock
11
People watching this product now!
-
Warranty Info
Payment Methods:
Description
This 0.91 inch I2C/IIC Serial 4-Pin OLED Display Module-WHITE is an OLED monochrome 128×32 dot matrix display module with I2C Interface. It is perfect when you need an ultra-small display. The driver IC is SSD1306 with the I2C interface. Comparing to LCD, OLED screens are way more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim outline, wide viewing angle, wide temperature range, and low power consumption. It is compatible with any 3V-5V microcontroller, such as Arduino.
Pin Definition:
- 1.GND: Power ground
- 2.VCC: Power positive
- 3.SCK: Clock wire
- 4.SDA: Data wire.
Package Includes:
- 1 x 0.91 inch I2C/IIC Serial 4-Pin OLED Display Module-WHITE
Specification
Model: OLED Display Module
Display Size (Inch): 0.91
Display Resolution: 128 × 32
Chip: SSD1306
Display area: 22.384 × 5.584mm
Operating Voltage (V): 3-5V
Interface Type: IIC
Operating Temperature (°C): -40º~70º Celsius
Pixel Color: White
Length (mm): 38
Width (mm): 12
Height (mm): 2.6
Weight (g): 3
Customer Reviews
Related Products

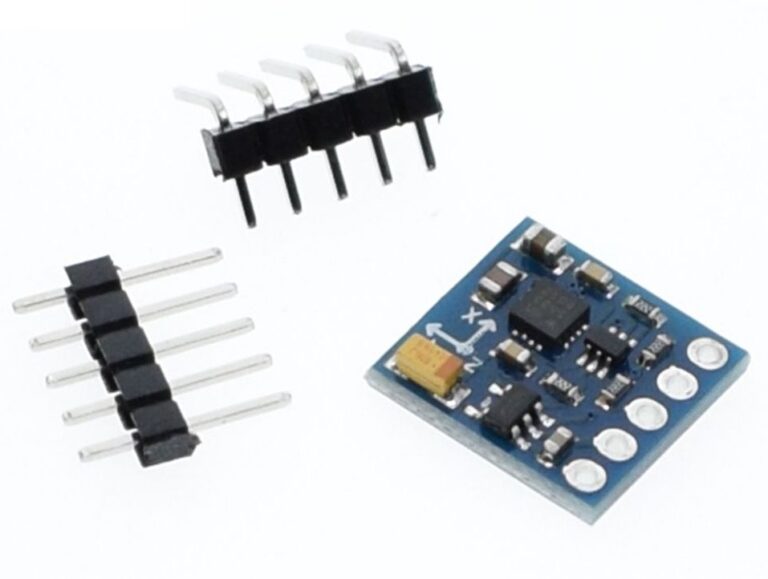

GY-271 HMC5883L 3-axis Electronic Compass Module Magnetic Field Sensor – Original Chip
